Codigo del articulo:MY-1300-B
Precio : Mex.$ 228,698/set (Aviso de Descuento) (Tiempo entrega 50-70 días)
Peso de Envio: 3300.0lb (1500kg) Flete
Wooden Box: There are total one wooden box.
Machine Dimension | 2240mm (88") x 1000mm (39.3") x 1520mm (42.9") |
Machine Weight | 2204.6lb (1000kg) |
Package | Fumigation free package |
Packing Size | 2400mm (95") x 1200mm (47") x 1800mm (70.8") |
Gross Weight | 2425lb (1100kg) |
Packing Picture:
El vendedor asume toda la responsabilidad de este listado
Cantidad: Pais:
Envío y manipulación | Para | Servico | Entrega* |
US $75.00 | Estadpos Unidos | Entrega express: TNT/DHL/FEDEX/UPS | Estimado entre |
Tiempo de Manejo |
Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado. |
Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China. |
|
Forma de pago |
|
Historial De Transacciones
Transacciones:
Maquina Pulidora de Bordes de Acrilico Diamante, Control por Pantalla Touch
Esta maquina se usa para pulir plexiglas, acrilico, vidrio organico, PMMA, PETG, PE etc. Aplica herramientas de corte PCD y monocristal para procesar el material finamente y obtener una superficie de espejo. Despues de pulir, el producto es muy transparente, no se decolora, perfecto como placa de guia de luz.
Pule materiales como acrilico, plastico, ABS, PVC y PMMA.
La Pulidora de Bordes de Acrilico Diamante es ampliamente usada en productos organicos, placa guia de luz y LED, marcos para fotos, etc.

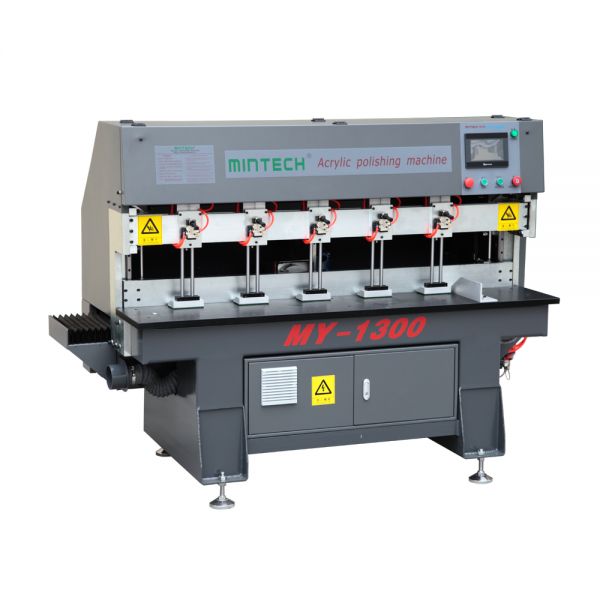

MINTECH+ Diamond Acrylic Edge Polishing Machine, Touch Screen Control
The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to process material finely and get mirror finish cutting surface. After polished, the products are high transparent, non-discoloring, especially perfect as light guide plate.
Features:
1.This machine is mainly used for polishing process on rear terminal of Acrylic for which it functions fast, good effects and environmental, etc.
2.The machine body, made of full steel structure by welding, high temperature process and precise machining tools, gives good machinery precision and stability.
3.PLC program control, servo motor driving, lead screw, straight linear guide rail driving, rapid and high controllability.
4.It adopts a Cylinder compacting material which is convenient for material up and down, very easy.
5.It can process the length at 1300mm (51”) or more longer materials, the straight edge or 45°angled edge, and the thickness each time process can be 100mm(3.93”).
6.The processing speed and its principal axis turning speed can be adjusted according work requirements.
7.It uses a principal axis to follow the type of vacuum,environmental and clean.
8.There is a pressure hand device which is to ensure not to crush your hands or other objects.
Product details:
45-degree bevel processing:
The spindle can be turned 45 degrees:

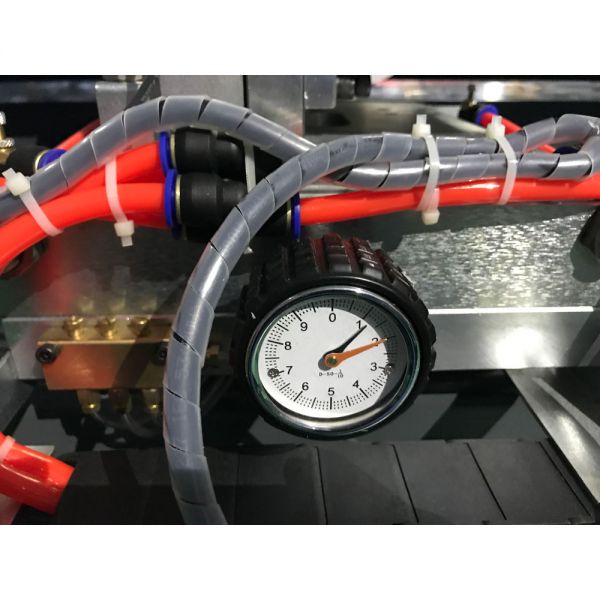

There is a pressure hand device and cutting depth adjustment:
Touch screen control panel (Provided with a protective film)

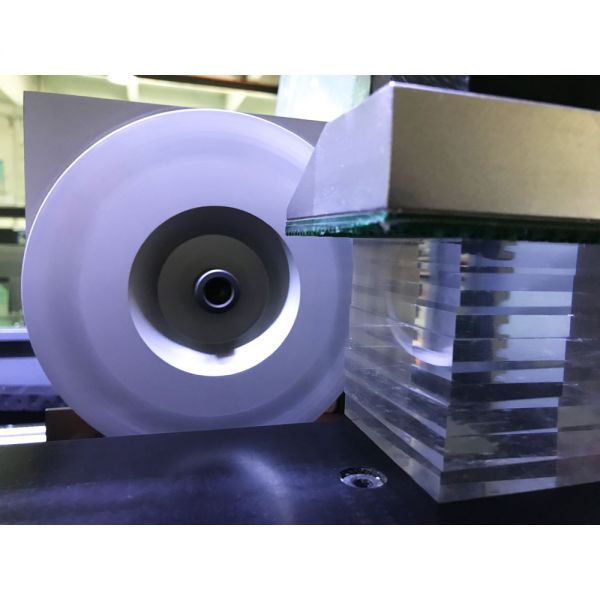

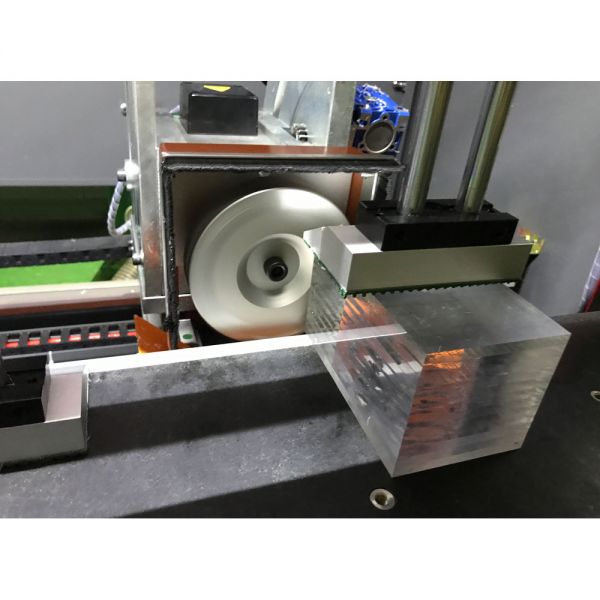

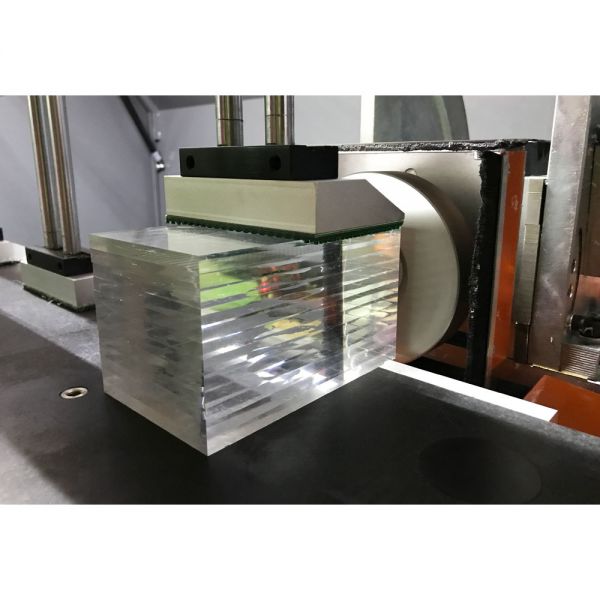

Thin, thick & stacked plastic edges polishing in a single pass:

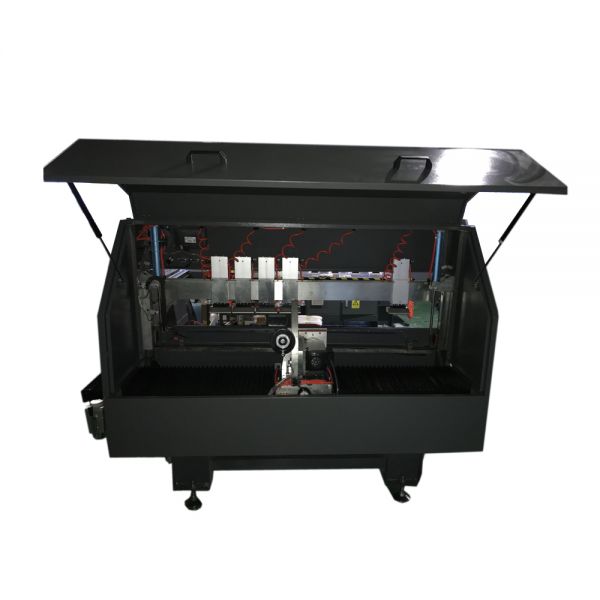

The cover can be opened:
Application:
Polishing the materials like acrylic, plastic, ABS, PVC and PMMA.
The Diamond Acrylic Edge Polisher is increasingly applied in organic products, LED and light guide plate, and photo frame making., etc.
Comparision:
Process:
Quality Report:
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Buyers say:
Jackson, Andy and David from UK
Adam Fernanders from South Africa
a) The Stepped Price
According to the different procurement quantities of customers, Sign-in-China.com formulates different price levels for commodity. Hence, your purchase price will be ultimately attributed to the procurement quantity.
The Stepped Prices shown on the product page is as following:
b) Trial Order Price / Sample Price
We offer free samples or some lower priced products(the product price plus shipping cost only)for our customers easily to experience our products and services from purchasing.
For details, please click:
http://www.sign-in-global.com/product/sampleproduct.html
c) Limited Time Offers
Every Tuesday Sign-in-China.com releases the latest products for Limited Time Offer, and after one week, the original price will be recovered. We sincerely expect your timely attention to the discount activities of Limited Time Offers on Sign-in-China.com.
For details, please click:
http://www.sign-in-global.com/product/discount.html
d) Flash Wholesale
Every Monday Sign-In-China.com and cooperation factory jointly campaigns the Flash Wholesale products for bulk purchase customers, and after a week, the original price will be receovered. We sincerely expect your timely attention to the preferential activities on Sign-In-China.com.
For details, please click:
http://www.sign-in-global.com/product/featuredproduct.html
e) You decide the prices for Bulk Orders
If the commodity quality you choose beyonds the quantity of fourth step price on Sign-in-China.com, or if you think the website stepped prices don’t meet your bulk purchase demand, you can use our "Make Offer" service on Sign-in-China.com to fill out your planned purchase quantity and target price then submit as a Bulk Order, for which we will review and endeavor to realize the deal with you.
If you need bulk order , please enter here to Make Offer:
a) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online
b) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments
c) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
d) Bank transfer
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
e) Telegraphic Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-China.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
Bank transfer payment information:
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Buyers say:
Jackson, Andy and David from UK
Adam Fernanders from South Africa
For details, please refer to the following:
a) Bank Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-China.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
Bank transfer payment information:
b) PayPal online payment https://www.paypal.com/webapps/mpp/buying-online
c) PayPal direct payment (our PayPal account: lyh@chinasigns.cn) https://www.paypal.com/webapps/mpp/make-online-payments
d) Credit card payment (through PayPal gateway, some areas may be restricted) https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
e) Bank transfer (through PayPal gateway) https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
f) Western Union Payment
Receiver’s First name: Zifei Receiver’s Last name: Li Address: 4th Floor., Building No.8, Community No.12. Advanced Business Park, No.188 Western Road of the 4th Ring, Fengtai, Beijing.
a) Confirm if your credit card requires verification: https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
If you failed to make payment via PayPal, please choose Bank Transfer(T/T) or Western Union Payment.We will ship your order by Express or by sea and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package. It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
For details, please click the following links:
Changes & Returns: http://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: http://www.sign-in-global.com/info/QualityWarranty.html
Pregunta | Hello, do you have more information about this machine and pictures? What are the shipping costst to the Netherlands (Rotterdam) and the delivery time? Hope to hear from you soon. Kind regards, Richard Rodenburg |
Respuesta |
|
Machine Size | 2240mm(88”)x1000mm(39.3")x1520mm(42.9") |
Package Size | 2400mm(95”)×1200mm(47”)×1800mm(70.8”) |
Power Supply | 1PH 220V 10A |
Spindle Speed | 1000~9000RPM |
Cutting Speed | 0~2000mm (78.7”)/min |
Cutting Angle | 0~45° |
Cutting Septh | 0~2mm |
Cutting Length | 1300mm (51”) |
Cutting Thickness | 100mm (3.93”) |
Cutting Mode | Spindle feeding |
Machine Weight | 1100KG |
Compressed Air | 0.6~0.8Mpa |
The Size of Dust Mouth | 100mm (3.93”) |
Escriba un comentario para Maquina Pulidora de Bordes de Acrilico Diamante, Control por Pantalla Touch
Maquina Pulidora de Bordes de Acrilico Diamante, Control por Pantalla Touch Mex.$228,698/set Min. Order : 1 set |
|
