Full Color Outdoor P10 LED Display Screen
  • Full Color Outdoor P10 LED Display Screen
  • Full Color Outdoor P10 LED Display Screen

Ver imagen más grande y otras vistas (con zoom)

Full Color Outdoor P10 LED Display Screen

Precio CON IVA,Pero no Incluye Pago Paypal.



Codigo del articulo:SIT-LED-T1000

  • Precio Unitario : Mex.$ 14,094/sq.m   (Aviso de Descuento) (Tiempo entrega 50-70 días)

  • Cantidad: sq.m(s) Costo Total : MXN Mex.$84,564
  • Peso de Envio: 113.1lb (51.4kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

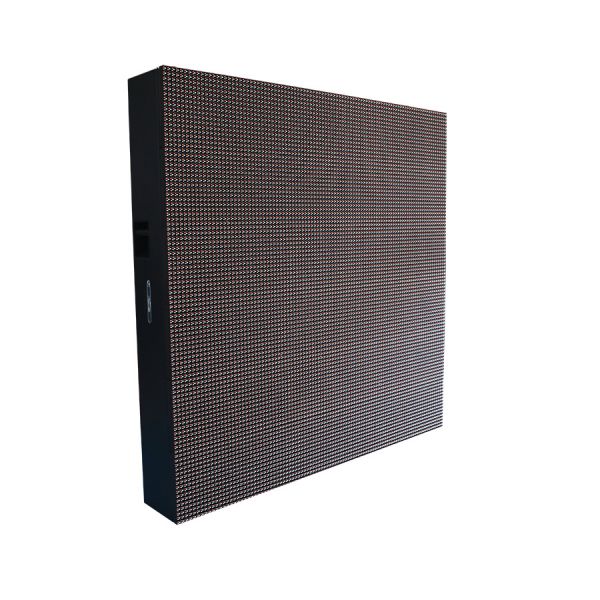

 Full Color Outdoor P10 LED Display Screen

Outdoor standardized LED product
Stable and reliable

> Magnalium alloy material, super-light, super-thin
> Standardized box: 960x960, standardized module: 320x160
> Standardized, serialized design; save warehousing cost and reduce service cost
> Proprietary redundant design for module
> High protection grade, IP65 on front and IP54 on rear

Specification

Parameters   T1000
Pixel Pitch(mm)  10.0 mm
Pixel Conguration              SMD 3535
Pixel Matrix per Panel   96 x 96 dots
Pixel Density  10,000/sqm
Panel Dimension(W×H×D)     960 x 960 x 132 mm
( 37.8”×37.8”×5.2”)
Panel Material  Die-casting Aluminum
Panel   Weight(kg/panel)  31kg/panel
(68.3 lb/panel)
Color Depth(Bit)   14 bit
Refresh Rate(Hz)   960Hz
Driver Method/scan   Scan 1/2
Brightness(nit/m²)  6500 nit/m²
Horizontal Viewing Angle(°)  140 °
Vertical Viewing Angle(°)   100 °
AC Power Input(V)  AC110V~ 220V ±10%
AC Power Frequency(Hz)     50 ~ 60 Hz
Max. Power(W/m²)   1000 W/m²
Avg. Power(W/m²) 400 W/m²
Storage Temperature -40℃ ~ 60℃
Operating Temperature   -20℃ ~ 40℃

Storage

Operating Humidity

10% ~ 90%RH
IP Rating(IP )  IP65 / IP54
Lifetime Typical Value   100,000 Hrs
Installation Type    Fix
Maintenance Method    Rear Serviceabl
Certications  /   /
