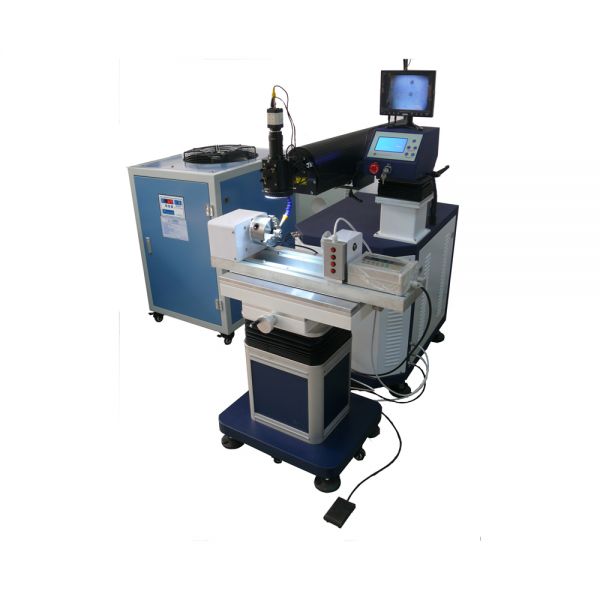

400W Mould Laser Welding Machine Welding Different Sorts of Steel as Used for Making Molds
  • 400W Mould Laser Welding Machine Welding Different Sorts of Steel as Used for Making Molds

Ver imagen más grande y otras vistas (con zoom)

400W Mould Laser Welding Machine Welding Different Sorts of Steel as Used for Making Molds

Precio CON IVA,Pero no Incluye Pago Paypal.

   |   42 Transacciones

Codigo del articulo:LWM-CY-WY400A

  • Precio Unitario : Mex.$ 228,487/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

  • Por Favor Eliga el Tipo
    China Warehouse
  • Cantidad: set(s) Costo Total : MXN Mex.$228,487
  • Peso de Envio: 935.0lb (425kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Features:
This machine features its small size, easy operation, firm and good-looking welded spots. It is suitable for repairing of different kinds of metal materials and can work for long time continuously, with small heated area and pollution free worksite. It can be used for welding different sorts of steel as used for making molds, beryllium copper, stainless steel, aluminum, platinum, K gold, silver and titanium and different metals and alloys.
•  Welding point’s diameter only 0.1-3.0mm, with high precision and accuracy;
•  Wavelength of YAG Laser is 1064nm which is less harmful to human skin compare to other laser
•  Small heating scope ensures distortion free and bubble free work pieces
•  Compensating the deficiency of traditional argon-arc welding and cold welding in repairing the fine surfaces; low oxidation effects and color change free for work pieces;
•  Welding operations can be done within the small spaces or deep cavity areas, no damage will be caused to the surrounding walls. No distortion on the mold nor dents around the weld pool can occur.
•  Edge won’t be damaged by burning when fine parts are repaired.
•  Argon gas protection ensures the repairing parts and base materials won’t be burned nor oxidized.
•  Joystick control, movable work piece, fitting and curve;
•  Operations monitored by microscope, ensuring good vision of fine parts;
•  Imported welding wires, fitting different kinds of imported mold materials, Polishing and texturing can also be realized.
•  Processing cost can be greatly saved in terms of materials, labor and time consuming.

Specifications:
Laser Power: 400W
Laser Source: Pulsed Nd:YAG 8*155mm
Pulse Width: 0.3-20ms
Pulse Frequency: 0.1-100Hz
Beam Diameter: 0.1-3.0mm
Filler Wire Diameter: Max 0.8mm

Single pulse Energy:120J
Cooling System: 2P water chiller
Power Supply: 380V±10%/50Hz
Power Consumption: 12KW
Observing System: Microscope 10X
3 axis of table: X=300mm,Y=200mm,Z=150mm,XY manual, Z electrical
Data Memorization: 100 groups
Illumination: LED ring lights
Language Display: English
Shield Gas Supply: One line quick connection (argon)
Running Environment: Tem 5°C-30°C, Hum 5%-75%
Dimensions:1150 x 700 x 1300mm+850 x 550 x 670mm+980 x 800 x 1150mm
Weight: 150kg(welder)+70kg(table) +75kg(chiller)
Packing Size:1350*740*1400+680*590*890+730*650*1240mm
Gross Weight: 425kg
