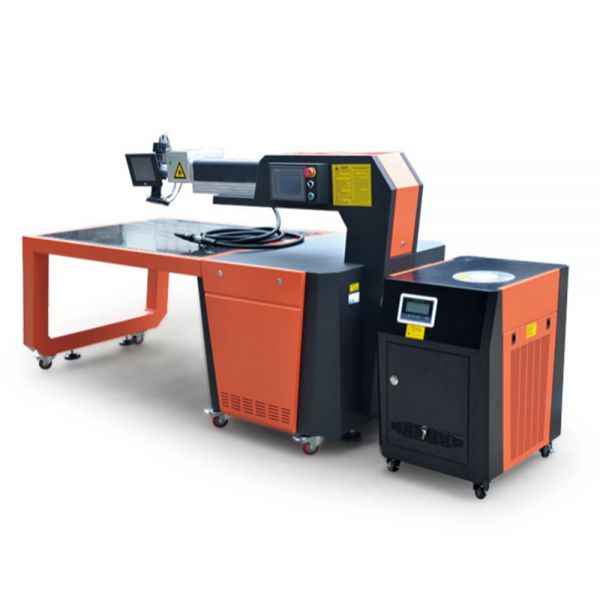

500w Fiber Laser Welding Machine for Fine Metal Channel Letter Making
  • 500w Fiber Laser Welding Machine for Fine Metal Channel Letter Making

Ver imagen más grande y otras vistas (con zoom)

500w Fiber Laser Welding Machine for Fine Metal Channel Letter Making

Precio CON IVA,Pero no Incluye Pago Paypal.

   |   54 Transacciones

Codigo del articulo:SIT-LWM-CSHG500

  • Precio Unitario : Mex.$ 169,954/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

  • Cantidad: set(s) Costo Total : MXN Mex.$169,954
  • Peso de Envio: 946.0lb (430kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

500w Fiber Laser Welding Machine for Fine Metal Channel Letter Making

Introduction:

Main parts: 3p water chiller+marble table+laser arm with power case.
This model is 500 watt fiber laser welding machine with 5 meters fiber cable. It can weld thicker metal sheet like stainless steel, galvanized steel etc.

Feature:
1. Applicable materials: stainless steel, steel plate, iron plate, and other metal.
2. Capacitance: large capacity and lasting constant energy storage.
3. Equipped with two xenon lamps, max laser power is near 600W.
4. Easy to operate, no technical requirements for the operator.
5. No black spot on the surface, without surface treatment.

Specification:

Max laser power 500w
Laer wave length 1064nm
Mono pulse max power 110J
Laser welding depth 0.5-2.0mm
Pulse width 0.1-20ms
Laser spot size adjusting range 0.2-2mm
Laser welding 1-50HZ
Power need AC220-240V 50/60Hz/AC380-50/60Hz
Whole power consumption 4.5KW/8KW
Standard configuration working table 1700x1100mm
Guarantee 1 year
Consumable Xenon Lamps, Thimble, ProtectingLens, Foot Switch

Advantages:
1.Special for making thick steel letters(1.5-2mm).
2.3P water cooling system, it adopts Panasonic compressor.
3.Light path is dust proof to protect lens.
4.The specification of crystal bar is 7*165mm.
5.Marble table is heavy, stable and smooth, which is difficult to scratch on the surface.

Details:
Two xenon lamps
5 meters fiber cable
The annular LED light, illumination is without shadow, brightness is adjustable.
Red light position:thimble, trinity( bearing, brass, white needles)


Samples:


Tool Kit:
Name Quantity/piece Name Quantity/piece
Cross screwdriver 1 Thread seal tape 1
Straight screwdriver 1 Quoit 4
Hexagonal Socket 5 Thimble 2
Photographic paper 1

Tool Kit:
Main Consumption: Protection lens, Xenon lamp, Thimble.
