Codigo del articulo:CS-DCZ503020
Precio Unitario : Mex.$ 1,247,739 - 1,313,409/set (Aviso de Descuento) (Tiempo entrega 69-89 días)
Peso de Envio: 2376.0lb (1080kg) Flete
Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.
Lead Time: After receiving customer's deposit, within 30 days.
Wooden Box: There are total two wooden boxes. One is machine body, the other is vacuum pump, control box etc.
Machine dimension | 146" × 97" × 11" (3720mm × 2470mm × 280mm) (Machine body), 420kg |
Machine weight | 1958lb (890kg) |
Package | Fumigation free package |
Packing size |
150" × 100" × 18" (3800mm × 2550mm × 450mm) (Machine body), 530kg |
Gross weight | 2376lb (1080kg) |
No. | Name | Unit | Quantity |
1 | Platform | Set | 1 |
2 | Control box | Set | 1 |
3 | Computer (host computer, keyboard, mouse, LCD) | Set | 1 |
4 | 3 phase 5.5kw Vacuum pump | Set | 1 |
5 * | 220V Air compressor - type 0.17V | Set | 1 |
6 | 930 control card and cable | Set | 1 |
7 | Control software and installation CD | Set | 1 |
8 | Data transporting cable (25 pin and 37 pin) | Strip | Each has one |
9 | Power supply cable | Strip | 1 |

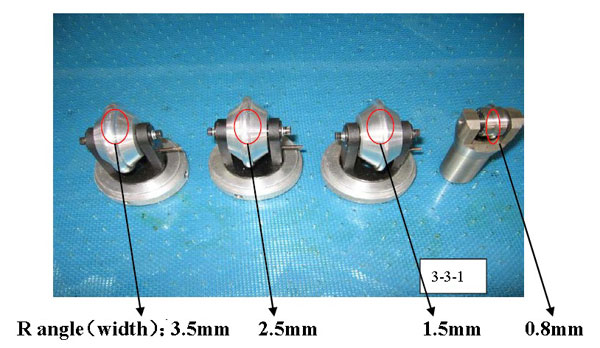

10 | Press wheel (7mm,5mm,3mm) | Piece | Each has one |
11 | Press wheel (paper board) 0.8mm | Piece | 1 |
12 | Screwdriver (middle and small plus drivers and screw drivers) | Piece | Each has one |
13 | Nipper pliers | Piece | 1 |
14 | Open wrench (5-7、8-10) | Piece | Each has one |
15 | “T” type wrench(2#、2.5#、3#、4#) | Piece | Each has one |
16 | Inner hexagon wrench (1.5#、2#、2.5#、3#、4#、5#) | Piece | Each has one |
17 | Special knife holder, fixed pen holder, spring pen holder and press pin holder | Piece | Each has one |
18 | Spring pen filler | Piece | 2 |
19 | light coupling slice | Piece | 2 |
20 | Fuse (10A) | Piece | 5 |
21 | Knife - 3-7mm, 26 degree | Strip | 10 |
22 | Knife - 8-12mm, 20 degree | Strip | 10 |
23 | Knife - 13-15mm, 16 degree | Strip | 5 |
24 | Special blade | Strip | 5 |
25 | Tool box | Piece | 1 |
26 | Rubber clasp | Piece | 10 |
27 | Black rubber band | Piece | 1 |
28 | Round and green rubber mat | Piece | 3 |
29 | Φ8 red windpipe | Meter | 14 |
30 | Φ75 vacuum rubber pipe | Meter | 8 |
31 | Φ75 rubber buckle | Piece | 3 |
32 | Laser light | Piece | 1 |
33 | 1.5V fastener battery | Set | 1 |
34 | Carbon brush | Piece | 2 |
35 | Assembly screw | Set | 1 |
36 | User’s manual | Copy | 1 |
37 | certificate of approval | Copy | 1 |
38 | Certificate of quality guarantee | Copy | 1 |
39 | List of fitting parts | Copy | 1 |
41* | Kasemake software |
◆The warranty is valid for 1 year starting from `the` merchandise arrival at Destination Port.
◆We will send our engineer to give you 5 days of training, maintenance or other technical support for free, although the buyer must afford traveling costs, lodging and accommodations of our engineer. An extra fee will be charged if the service time exceeds 5 days.
◆If a standard part breaks due to a quality problem within the time covered by the warranty, the buyer should send the seller the broken part, and the seller will send a new part to the buyer as soon as possible and guide buyer on how to change it the way it has been taught in the training.
◆User-friendly English manual for instructions on machine usage and maintenance.
Technical Supports
About Machines
◆ We have the professional after-sale services teams. We can provide the professional Training to our clients.
◆In the training, we will teach them the general operation rule, maintenance method, and the solution of the general problems of the machines.
◆ During the working process of the laser machine in customer side, if there is any very difficult problems which the customers don't know how to solve, we will provide the corresponding solution to customers via telephone or internet (such as e-mail, MSN, Skype).
◆At the same, if the problems still can't be solved via telephone and internet, we will send our technical engineer to visit customer side to solve the problem directly according to the actual situation at that moment.
Optional Parts
Video registration system (CCD camera): $5,500 (Add an extra fee to the price)
Kasemake software: $5,000 (Add an extra fee to the price)
Customers could select video registration system as an option to cover different materials application. This registration system mainly works for printed materials by reading printed marks automatically then to search the mark, after calculating by the software, cut the shape off the material automatically. This could greatly improve cutting accuracy and efficiency of printed items
Wearing Spare Parts
Items | Specifications | Unit Price |
Blade | 26 degree | $4.5 |
20 degree | $4.5 | |
16 degree | $4.5 | |
39 degree | $4.5 | |
Special type knife (Cut the white cardboard) | $4.5 | |
Plastic pad |
El vendedor asume toda la responsabilidad de este listado
Cantidad: Pais:
Envío y manipulación | Para | Servico | Entrega* |
US $75.00 | Estadpos Unidos | Entrega express: TNT/DHL/FEDEX/UPS | Estimado entre |
Tiempo de Manejo |
Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado. |
Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China. |
|
Forma de pago |
|
Historial De Transacciones
Transacciones: 13

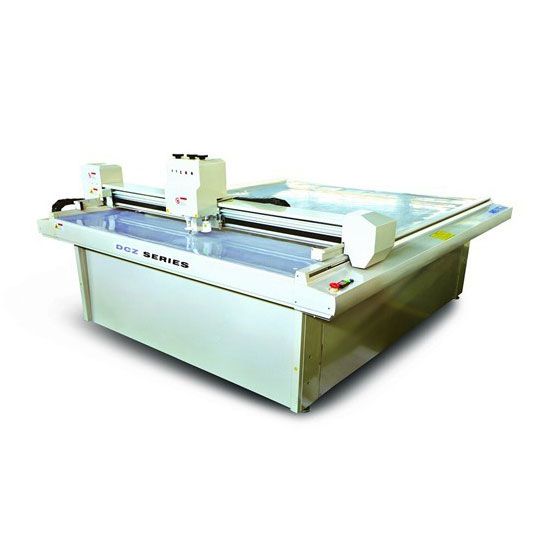

Die-less corte y plegado de tablas
Certificado: ISO2000, certificado del CE
Rentable máquina de acabado digital de la industria para señal y muestra proporciona automatización, alta productividad y precisión, con características únicas que ahorran tiempo y aumentar la productividad.
Caja de cartón muestras que hace, corto plazo producción de corte y plegado de tablas
La herramienta tiene 4 portaherramientas: arrastre de pluma, rueda que arruga, oscilante cuchillo, cuchillo + un soporte para la cámara CCD (opcional)
Aplicaciones
CS-DCZ503020 ejemplo de serie que hace la máquina hace corte, plegado, dibujo disponible, estable, alta velocidad, alta precisión. Podía hacer frente a fabricación de la muestra o pequeña producción requieren de compañía de empaquetado, caja de cartón corrugado fabricante, fabricante de la caja de color, fabricante impresión color, fabricante de troquel de corte. Podría cortar corrugado, conglomerado, tablero de la espuma, tablero plástico, tablero de madera fino, cuero, paño etc.. Somos gran fama por los clientes de embalaje, publicidad, impresión, troquelado, electrónica, empaque, industrias de signo.

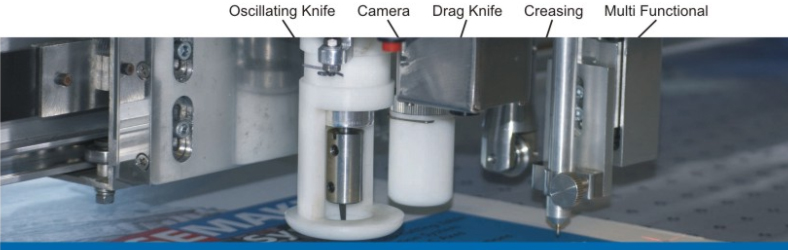

La cabeza de la máquina, con su colección de partes movibles de la herramienta, ofrece excelente funcionalidad para una amplia variedad de materiales que van desde papel, película sensible presión o vinilo a cartones, textiles, plásticos, cartón corrugados, espuma tablero, aluminio y mucho más.
Personajes
Muchas funciones prácticas se suman a CS-DCZ50 máquina de corte de la serie, como el sistema de guardia de seguridad, herramienta de cuchilla de arrastre.
◆ Cuatro herramientas incluyen oscilante herramienta cuchilla, arrastre la herramienta cuchillo, arrugando la herramienta trazar lápiz.
◆ Caja y cartón pueden llegar al rendimiento de corte perfecto
◆ Conveniente la mitad cortar set para lograr un rendimiento de corte medio perfecto
◆ Tiene sistema de guarda de seguridad para evitar lesiones
◆ Modelo más vendido bien en mercado de la UE y Estados Unidos
◆ Las mesas están decoradas para lucir bien en el estudio de diseño, con la fuerza adecuada para el piso de la fábrica. Baja, sin obstrucciones laterales aseguran carga fácil.
◆ Un sistema de seguridad infrarrojo viga protege al usuario.
◆ Junta es sostenida en posición en la tabla por sistemas de vacío de gran alcance, mientras que registro exacto con la ayuda de un sistema de luz láser incorporada.
◆ Para máxima potencia y precisión, todos los motores del movimiento de la mesa de conducción son servos digitales. Control de movimiento es mediante un controlador de PC.

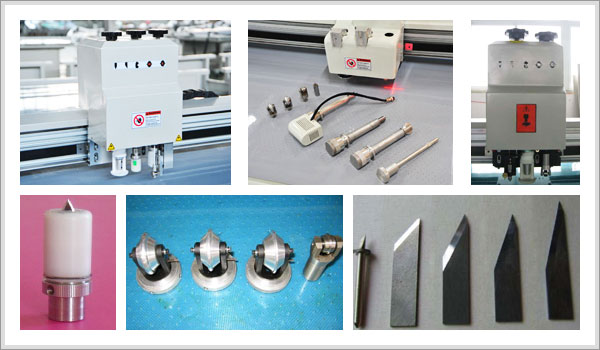

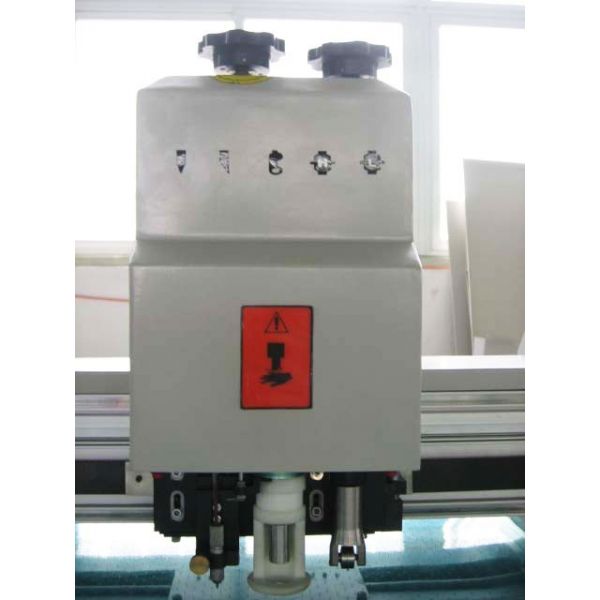

Instrucción de Machine Head
Hay opciones de herramientas para corte y pliegue la más amplia gama de materiales de la hoja, desde tableros acanalados para barniz mantas, plegable de cartón a la tablilla de anuncios.
Si usted quiere saber más información sobre herramienta de corte, puede descargar el archivo de "Introducción de la cabeza y herramientas de corte".

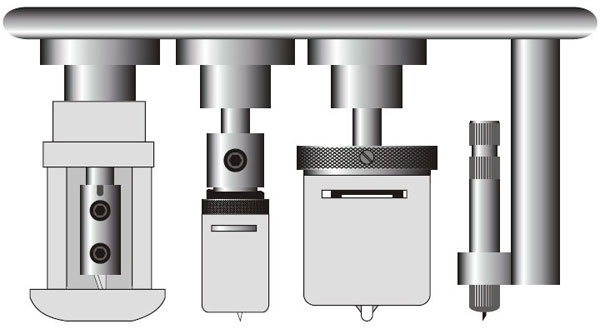

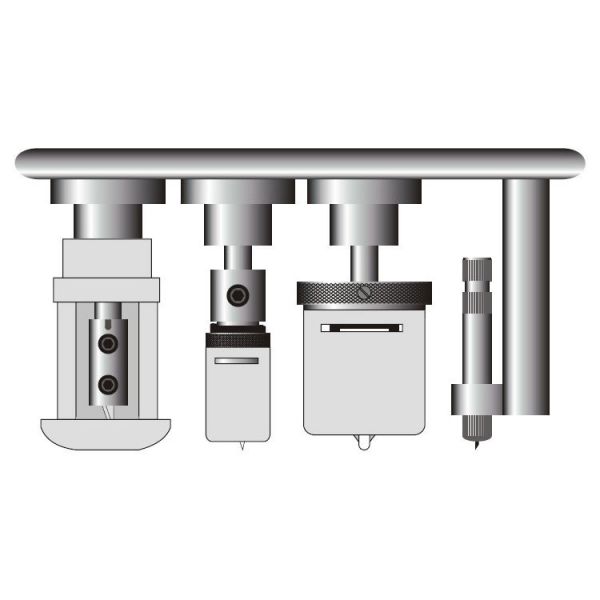

La herramienta tiene 4 portaherramientas: una pluma, una rueda que arruga, un cuchillo oscilante, un cuchillo de arrastre + un soporte para la cámara CCD (opcional)
Funciones de las herramientas
• Función de dibujo: la pluma puede dibujar varios dibujos de alta precisión.
• Función de plegado: pueden doblar papel acanalado, papel de tarjeta y tablero compensado en 'una' línea plegable relativamente perfecta.
• Función de la línea de puntos: se utiliza para plegar papel corrugado y gris de la tarjeta después de cortar por la mitad y para cortar una línea de puntos.
• Función de la localización: ubicación de precisión con una lámpara laser
• Función de corte de oscilante herramienta: es capaz de cortar diversos materiales tales como papel acanalado, papel de cartas, papel compensado, tablero gris, materiales compuestos, Junta, cuero y textiles, etc..
• Trabajo pesado arrastre herramienta cuchilla: la cuchilla de arrastre pesado extiende la aplicación de la corte para hacer frente a materiales duros y gruesos, que no están disponibles en oscilante herramienta de corte.
• Función de corte (opción) del contorno: los clientes podrían seleccionar sistema de registro de video como una opción para cubrir la aplicación de diferentes materiales.• Rueda de presión: prensa doble función de línea, puede presionar la línea perfecta en el papel acanalado, tablero de cartón y gris, etc...
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Buyers say:
Jackson, Andy and David from UK
Adam Fernanders from South Africa
a) The Stepped Price
According to the different procurement quantities of customers, Sign-in-China.com formulates different price levels for commodity. Hence, your purchase price will be ultimately attributed to the procurement quantity.
The Stepped Prices shown on the product page is as following:
b) Trial Order Price / Sample Price
We offer free samples or some lower priced products(the product price plus shipping cost only)for our customers easily to experience our products and services from purchasing.
For details, please click:
http://www.sign-in-global.com/product/sampleproduct.html
c) Limited Time Offers
Every Tuesday Sign-in-China.com releases the latest products for Limited Time Offer, and after one week, the original price will be recovered. We sincerely expect your timely attention to the discount activities of Limited Time Offers on Sign-in-China.com.
For details, please click:
http://www.sign-in-global.com/product/discount.html
d) Flash Wholesale
Every Monday Sign-In-China.com and cooperation factory jointly campaigns the Flash Wholesale products for bulk purchase customers, and after a week, the original price will be receovered. We sincerely expect your timely attention to the preferential activities on Sign-In-China.com.
For details, please click:
http://www.sign-in-global.com/product/featuredproduct.html
e) You decide the prices for Bulk Orders
If the commodity quality you choose beyonds the quantity of fourth step price on Sign-in-China.com, or if you think the website stepped prices don’t meet your bulk purchase demand, you can use our "Make Offer" service on Sign-in-China.com to fill out your planned purchase quantity and target price then submit as a Bulk Order, for which we will review and endeavor to realize the deal with you.
If you need bulk order , please enter here to Make Offer:
a) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online
b) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments
c) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
d) Bank transfer
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
e) Telegraphic Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-China.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
Bank transfer payment information:
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Buyers say:
Jackson, Andy and David from UK
Adam Fernanders from South Africa
For details, please refer to the following:
a) Bank Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-China.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
Bank transfer payment information:
b) PayPal online payment https://www.paypal.com/webapps/mpp/buying-online
c) PayPal direct payment (our PayPal account: lyh@chinasigns.cn) https://www.paypal.com/webapps/mpp/make-online-payments
d) Credit card payment (through PayPal gateway, some areas may be restricted) https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
e) Bank transfer (through PayPal gateway) https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
f) Western Union Payment
Receiver’s First name: Zifei Receiver’s Last name: Li Address: 4th Floor., Building No.8, Community No.12. Advanced Business Park, No.188 Western Road of the 4th Ring, Fengtai, Beijing.
a) Confirm if your credit card requires verification: https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
If you failed to make payment via PayPal, please choose Bank Transfer(T/T) or Western Union Payment.We will ship your order by Express or by sea and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package. It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
For details, please click the following links:
Changes & Returns: http://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: http://www.sign-in-global.com/info/QualityWarranty.html
Pregunta | Can you confirm that there is a camera installed? |
Respuesta |
|
Pregunta | What software is the machine is operated with? |
Respuesta |
|
Pregunta | Does the software KASEMAKE software a must have to run for the machine or you supply an alternative software included in the price? |
Respuesta |
|
Pregunta | How many heads and holders does this machine have? |
Respuesta |
|
Área máxima de corte |
118 "× 79" (3000 x 2000 mm) |
Velocidad de corte máxima |
39"(1000mm) / s |
Diámetro mínimo de corte |
0,24"(6mm) |
Espesor de corte máximo |
0,59"(15mm) |
Línea de control y controlador |
Motor servo |
Zona de entrada del amortiguador |
32MB |
Precisión de colocación |
0,004"(0,1 mm) |
Precisión de corte |
0,004"(0,1 mm) |
Precisión de repetición |
≤0.004 "(0,1 mm) |
Formato de instrucción |
HPGL |
Puerto de datos |
Puerto PCI |
Velocidad de transporte de datos |
10MB / s |
Tipo fijo |
Absorción de vacío |
Potencia de bomba de vacío |
5.5KW |
Soporte de energía |
220V ± 10%, 50Hz |
Software |
Software de procesamiento de SICCUT. Es compatible con todo el software que puede hacer salir archivos de DXF, formato PLT, tales como CAD, CorelDraw y AI, etc... |
Equipamiento de serie |
Equipo bomba de vacío, software de control, 30 PC de cuchillas oscilantes y otros accesorios. |
Dispositivo opcional |
Kasemake software |
Dimensión de la máquina |
146 "x 97" × 11"(3720 x 2470 mm x 280 mm) (cuerpo de la máquina), 420kg |
Peso de la máquina |
1958 libras (890kg) |
(También podemos hacer la máquina según su requisito)
