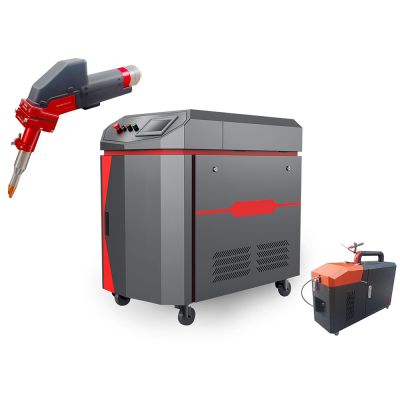

1000W/1500W/2000W/3000W Handheld Laser Welding Machine
  • 1000W/1500W/2000W/3000W Handheld Laser Welding Machine

Ver imagen más grande y otras vistas (con zoom)

1000W/1500W/2000W/3000W Handheld Laser Welding Machine

   |   261 Transacciones

Codigo del articulo:SIT-LWM-LN

  • Precio Unitario : Mex.$ 119,171/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

  • Por Favor Eliga el Tipo

    Por Favor Eliga el Tipo: 1000W 1500W 2000W 3000W
  • Cantidad: set(s) Costo Total : MXN Mex.$119,171
  • Peso de Envio: 572.0lb (260kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

1000W/1500W/2000W/3000W Handheld Laser Welding Machine


Machine introduction:

1000W/1500W/2000W/3000W Hand-held laser welding machine, uses latest generation laser generator. It's equipped with wobble weld head which is developed by us. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.


Machine Features & Advantages:
1) The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders a year.

2) Laser welding consumes less material and has a long-life.
3) Easy to operate, no need welding work license, new user can also weld products beautifully.

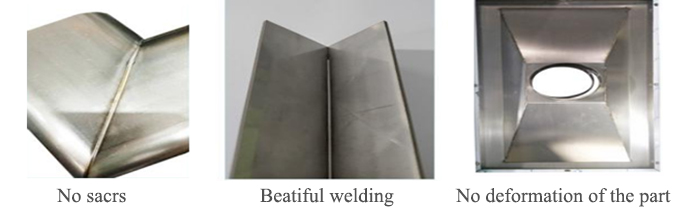

4) The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
5) No deformation, no weld scar, welding firmly.
6) Safer and more environmentally friendly.
7) We independently developed welding head, which made up for the disadvantage of small laser spot, expanded the tolerance range of processing parts and weld width, and obtained better weld formation.

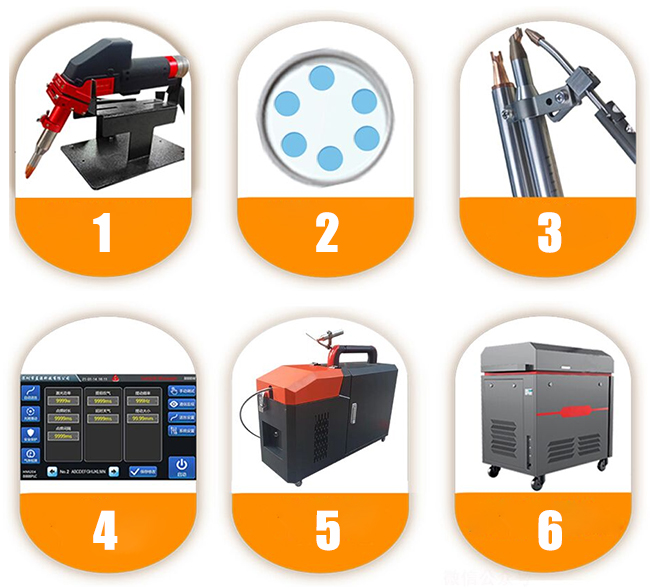

Details:

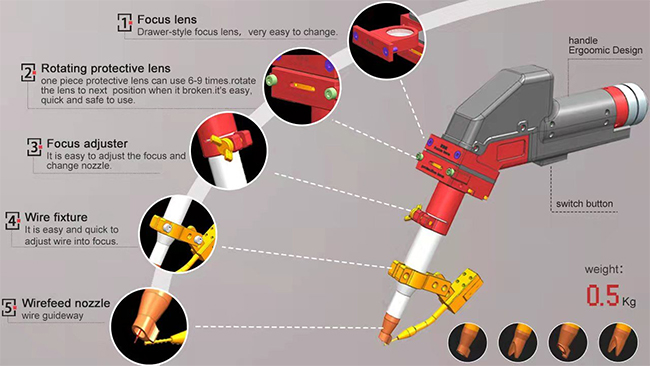

1) Self-developed super mini head, 0.5kg.
2) Original rotating lens design, 6 times the service life.
3) Original wire feeding fixture, flexible and convenient wire feeding switching, convenient focusing
4) Industrial control PLC, system linkage control wire feeding, wire feeding is more accurate.
5) High-precision stepping motor, four-wheel drive wire feeding structure.
6) Patented cabinet, good heat dissipation, safe and beautiful inside the cable and gun head.


Machine Parameters:

Power 1000W/1500W/2000W/3000W Raycus
Wavelength 1070NM
Cable Length Standard: 10M / Customize can up to 15M
Work Way Continuously / Pulsed
Speed range 0-120mm/s
Water Chiller Industrial thermostatic water tank
Working environment temperature 15-35°C
Working environment humidity <70% without condensation
Welding  depth 0-2.5mm
Weld beam width ≤4mm
Working Voltage AV220V
Contrast with Traditional Argon Arc Welding:
Item Traditional welding Yag Laser Welding Handheld  Laser Welding Machine
Heat input to the workpiece Very high Low Low
Deformation  of workpiece, under cut Big Small Small
Bond strength with base material Common Good Excellent
Subsequent processing Polish   No or very little grinding
Welding speed Common   fast
Applied materials Stainless steel, Aluminum, Iron, Copper   Stainless steel, aluminum,    iron, Copper
Consumables Many Little Little
Operation difficulty Complicate Common Simple
Operator safety Not safe Safe Safe
Impact on  the environment Pollution Environmental Environmental
Welding  fault tolerance Good common Good
Wobble welding No No Yes
Adjustable spot width No No Yes
Welding quality Bad Common Excellent

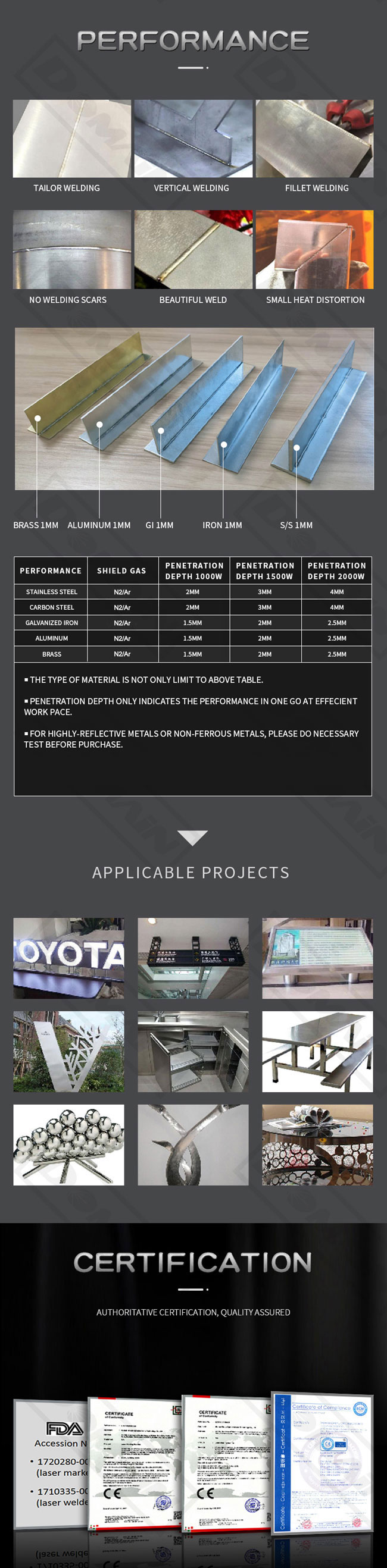

  Welding Thickness of matrial
Laser power Stainless steel Carbon steel Aluminum  Galvanized sheet
1000W 2.5mm 2.5mm 2mm 2.5mm
1500W 3.5mm 3.5mm 3mm 3.5mm
2000W 5mm 4.5mm 4.5mm 4.5mm
3000W 7mm 7mm 7mm 7mm



Application Samples:
