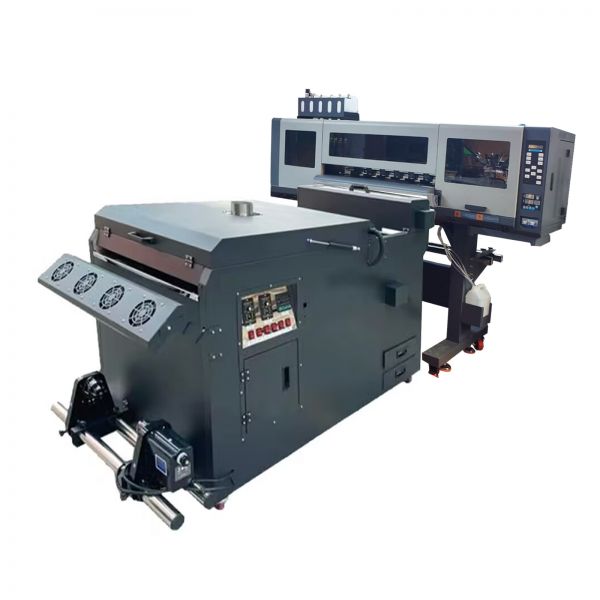

650 Impresora DTF con Agitador de Polvo Secador y 4 Cabezales Epson
  • 650 Impresora DTF con Agitador de Polvo Secador y 4 Cabezales Epson
  • 650 Impresora DTF con Agitador de Polvo Secador y 4 Cabezales Epson
  • 650 Impresora DTF con Agitador de Polvo Secador y 4 Cabezales Epson

Ver imagen más grande y otras vistas (con zoom)

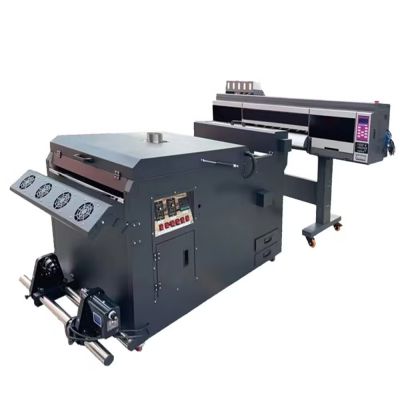

650 Impresora DTF con Agitador de Polvo Secador y 4 Cabezales Epson

   |   23 Transacciones

Codigo del articulo:SIT-HTM-BSL-650D

  • Precio Unitario : Mex.$ 195,020/set (en existencia)

  • Por Favor Eliga el Tipo


    print head num : 4-head 2-head
  • Cantidad: set(s) Costo Total : MXN Mex.$195,020
  • Peso de Envio: 737.0lb (335kg) freightFlete

Buyer Protection

650 DTF Printer Powder Shaker and Dryer with 2/4 Epson i3200A1 Printheads

Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.

Specifications:

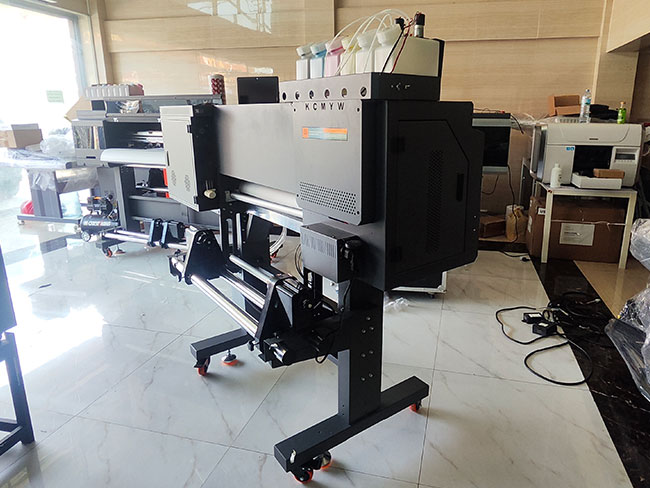

650 DTF Printer
Printing width ≤680mm
Print Head 650B/Epson i3200A1 650C/Epson XP600 650D/Epson i3200A1
Print head qty. (pc) 2 2 4
Printing speed 4pass 12 m²/h 6.5 m²/h 28 m²/h
6pass 8.5 m²/h 4 m²/h 21 m²/h
8pass 6 m²/h 2.5 m²/h 14 m²/h

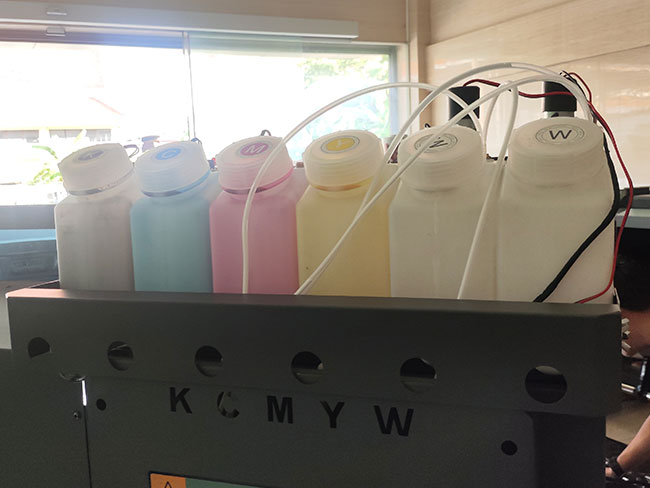

Print color CMYK/ CMYK LC LM LY LlK/ CMYK FY FM FO FG
Suitable media PET film
Heating and drying function Front guide plate heating, solidified upper drying, and cold air cooling function
Print head cleaning Automatic
Heating method Front guide plate heating (30~65°C)
Platform suction adjustment Yes
Working environment Temperature 20~28°C
Relative humidity 40-60%
Software Maintop
Operating system XP/ Win7/ Win10
Rewinding function Automatic induction rewinding
Rated power 350W

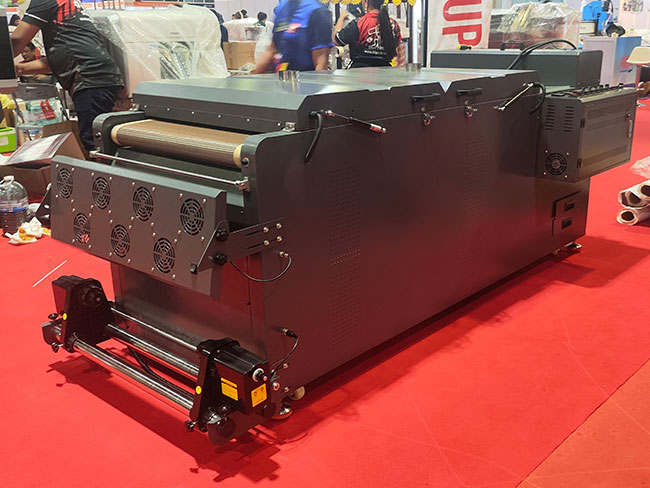

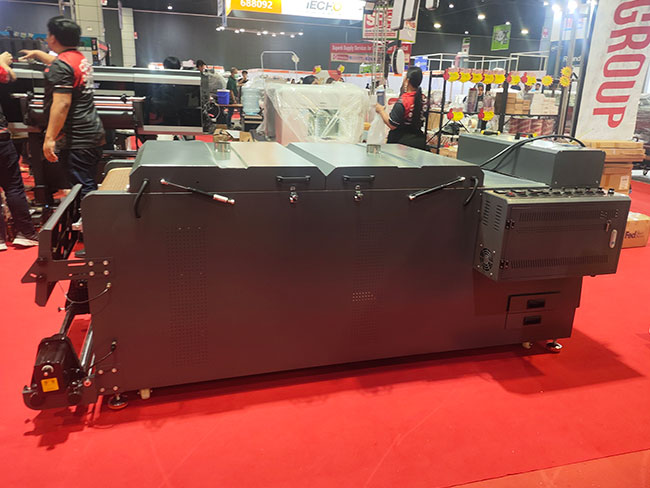

Powder Shaker and Dryer
Shake powder width ≤650mm
Applicable medium Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc.
Fan control Shake powder control, dusting control, direction and quantity control
Heating and drying function Front guide plate heating, upper drying and curing, cold air cooling function
Rewinding function Automatic induction winding
Rated voltage 220V
Rated current 23A
rated power 5200W
Packaging size 1900x980x1170mm 220kg

Digital printing solution:

1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect

Details:

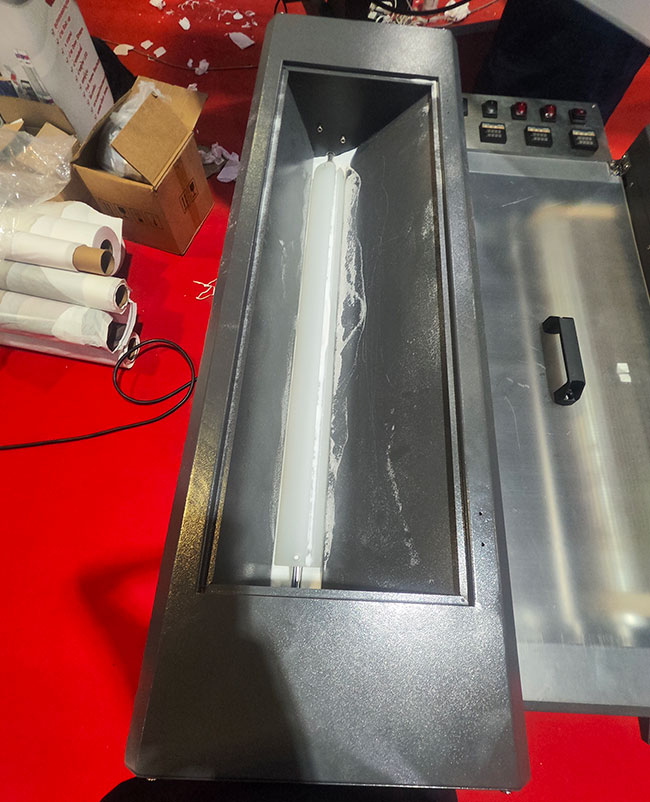

1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.

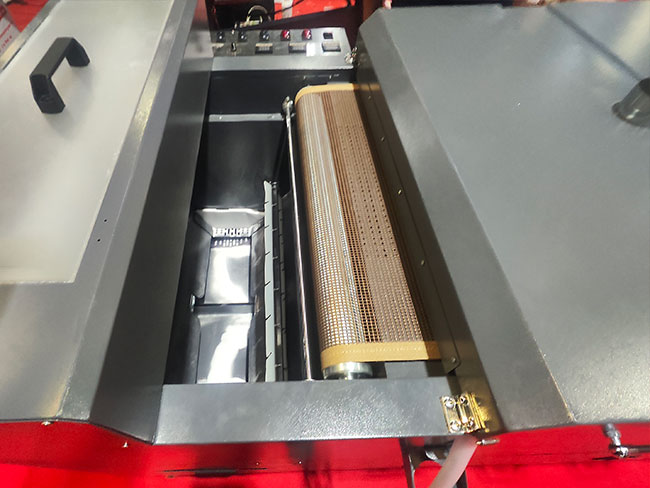

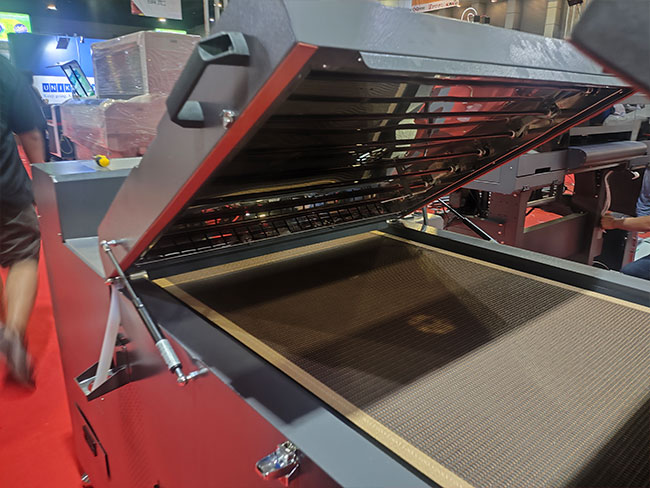

3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.

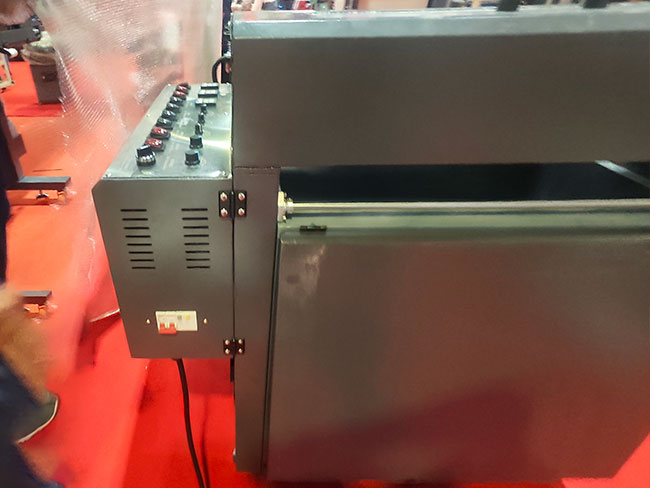

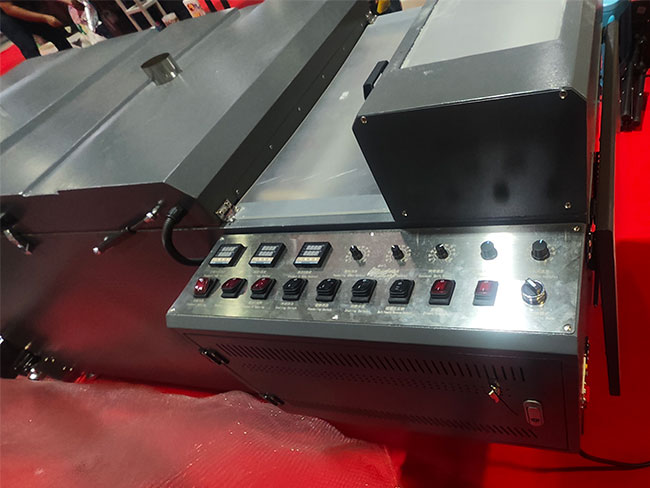

4. Control panel: Chinese and English button panel, simplified operation, easy to understand.

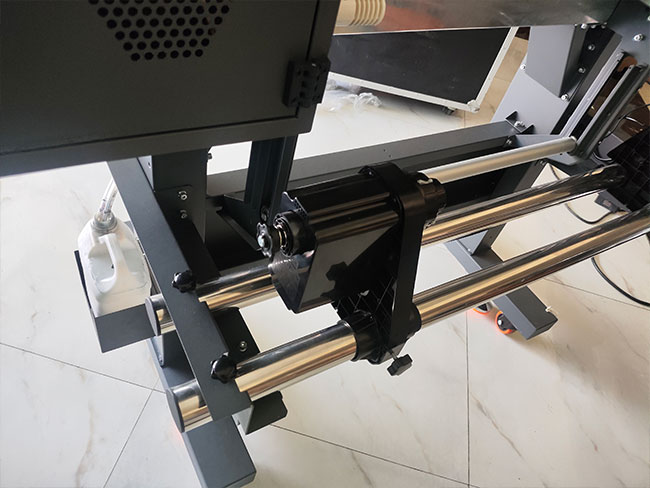

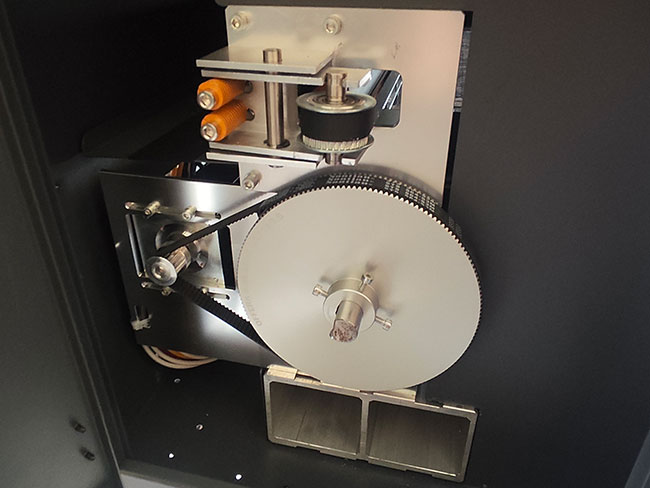

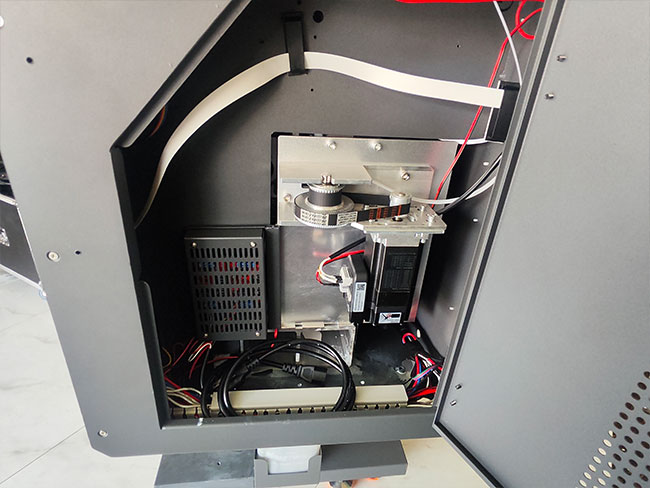

5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.
6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.

Tips:The machine defaults to waveform number 4. If the printing effect is not satisfactory, the machine's default waveform can be changed to 6.

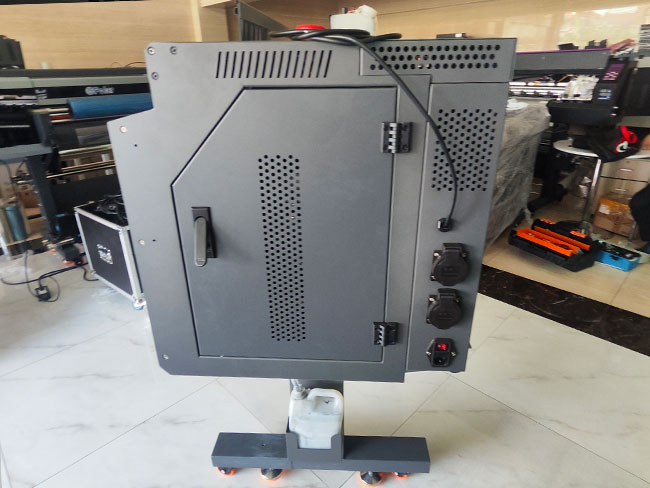

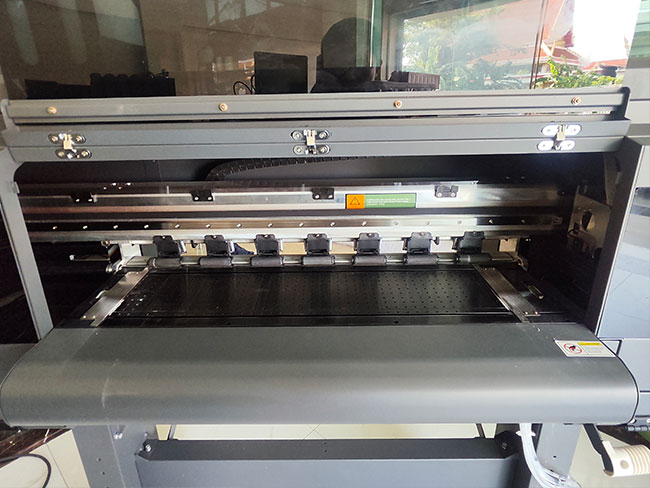

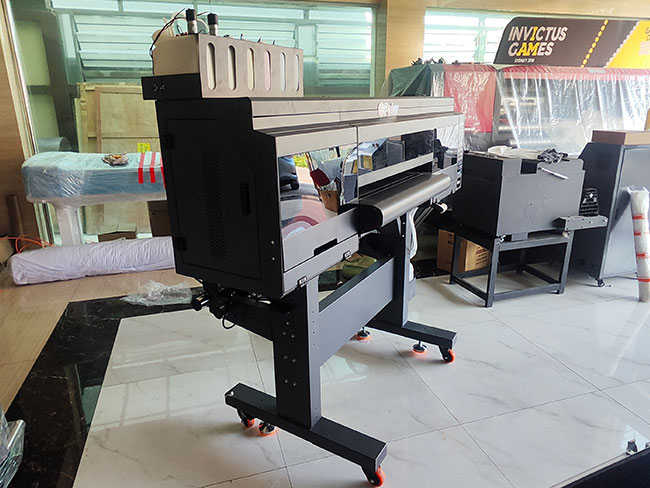

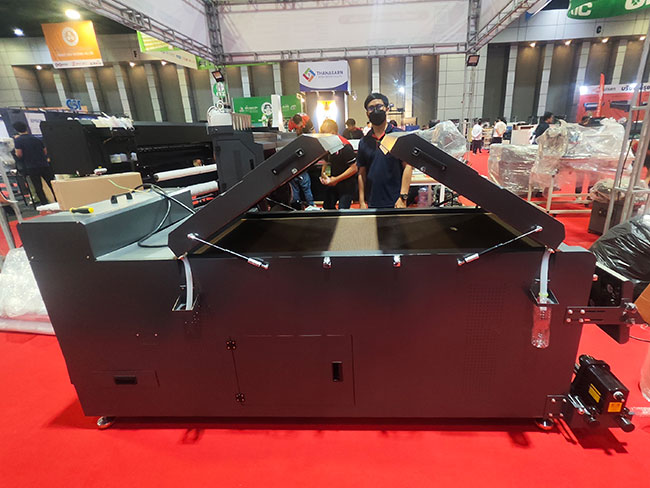

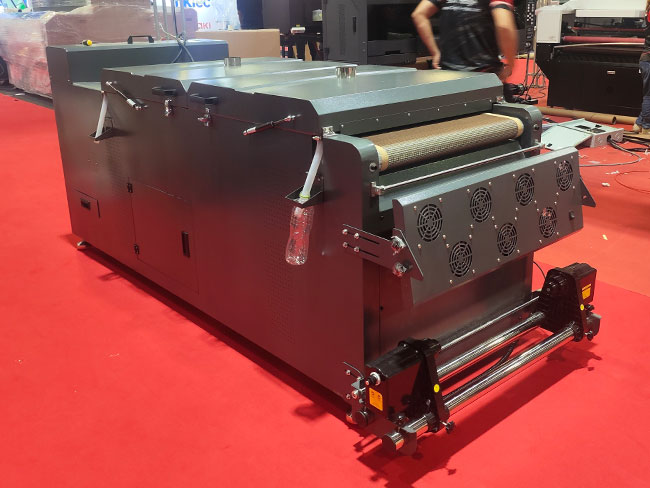

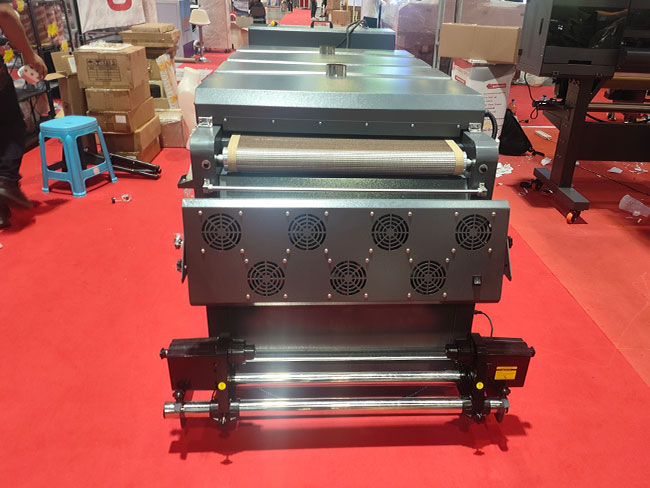

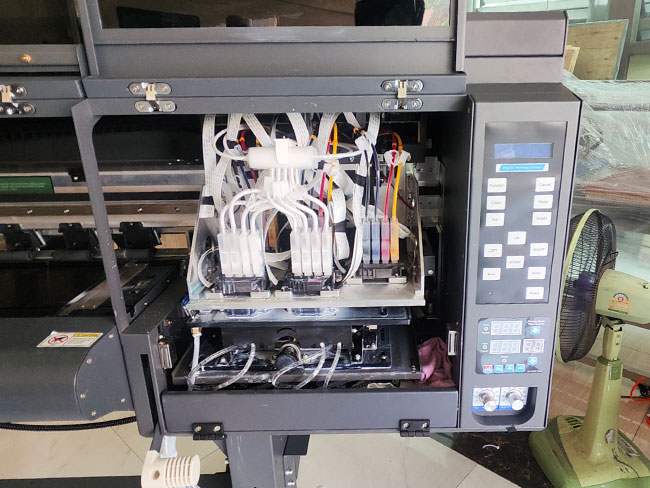

Product photos:












Applications:
