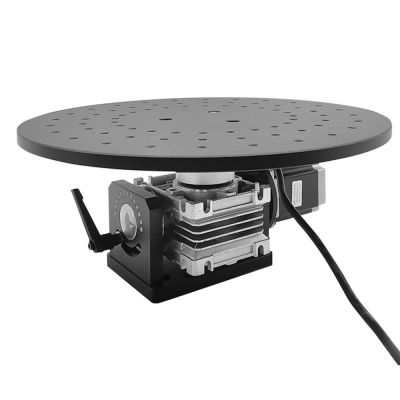

300mm Multi-station Rotary Worktable With MC542 Driver for DIY Laser Marking
  • 300mm Multi-station Rotary Worktable With MC542 Driver for DIY Laser Marking

Ver imagen más grande y otras vistas (con zoom)

300mm Multi-station Rotary Worktable With MC542 Driver for DIY Laser Marking



Codigo del articulo:LMM-KT-RA002

  • Precio Unitario : Mex.$ 12,797/set   (Aviso de Descuento) (Tiempo entrega 8-15 días)

  • Cantidad: set(s) Costo Total : MXN Mex.$12,797
  • Peso de Envio: 13.2lb (6kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

300mm Multi-station Rotary Worktable With MC542 Driver for DIY Laser Marking

Specification:

Mounting hole spacing: 50 x 75mm(2" x 3") / 60 x 90mm(2.4" x 3.5")
Motor: 57 step motor
Working area diameter: 300mm(11.8")
Center load: 15kg(33lb)
Deceleration ratio: 1:10
Hole thread: M6
Package Size: 35cm x 32cm x 19cm (14" x 12.6" x 7.5")
Gross Weight: 6kg (13.2lbs)

Features:
1. Suitable for multi-station marking of small workpiece, marking of large circular workpiece, product testing, etc
2. Spindle can rotate 0-45° to the left, with calibration and locking function
3. 57 stepper motor is adopted, which can easily realize automatic control
