Standard	CCD system, oscillating knife, drag knife
Optional	creasing wheel / V-cut / kiss cut, Choose one of three

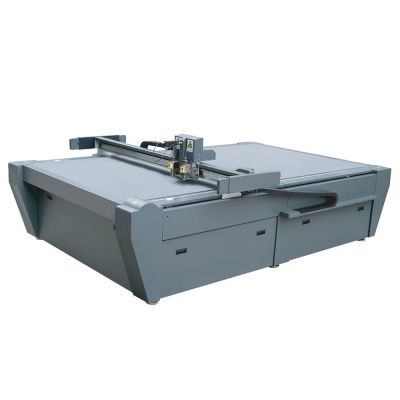

B4-1013/1815/2516/3020 Large Format Flatbed Digital Cutting Machine with Fixed Platform

Description:
B4 Flatbed digital cutting system can realize through cutting, half cutting, creasing, milling, punching and nesting with high speed and high precision. With conveyor table, B4 can complete the material feeding and collecting with fast speed. It is quite suitable for sample making, short-run and mass production in Sign & Graphic, Packaging, Automotive, Gasket industries.

Features:
• Efficient cutting heads
• Precise automatic camera positioning system (optional)
• Continuous conveyor table system (optional)
• Aviation aluminum table
• Safety device
• Cutting Tools: Oscillating tool, Rotary tool, Kiss-cut, V-cut, Creasing wheel tool, Router tool, Foam cut tool, Wheel cut tool etc.

Specifications:

Model	B4-1013	B4-1815	B4-2516	B4-3020
Effective cutting area(MM)	1000x1300	1800x1500	2500x1600	3000x2000
Overall dimension(MM)	14901585870	27401885870	34401985870	39402385870
Specical size	Customizable
Safe device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Tools	Electric oscillating tool，Universal cut tool，Kiss cut tool，CCD，Cursor，Pen Pneumatic oscillating tool，Power rotary tool，Creasing tool,VCUT，Universal router tool
Cutting thickness	≤40mm(up to 55mm for optional)
Cutting speed	≤1200mm/s
Cutting precision	≤0.1mm
Repeated accuracy	≤0.05mm
Fixing method	vacuum suction
lnterface	Ethernet port
Ethernet port	lntelligent digital control servo system
Command	DXF，HPGL，PDF，PLT compatible format
Control panel	Multi-language LCD touch panel
Suction power	3KW	7.5KW	7.5KW	11KW
Power Supply	AC220/380V 50~6OHz
Working Environment	Temperature: -10℃~40℃,Humidity : 20%~80%RH
Upgradeable Configuration	vacuum pump with frequency transformer vacuum pump silencing box Aluminnum vaccum table with 8 air zones Rack transmission Supply

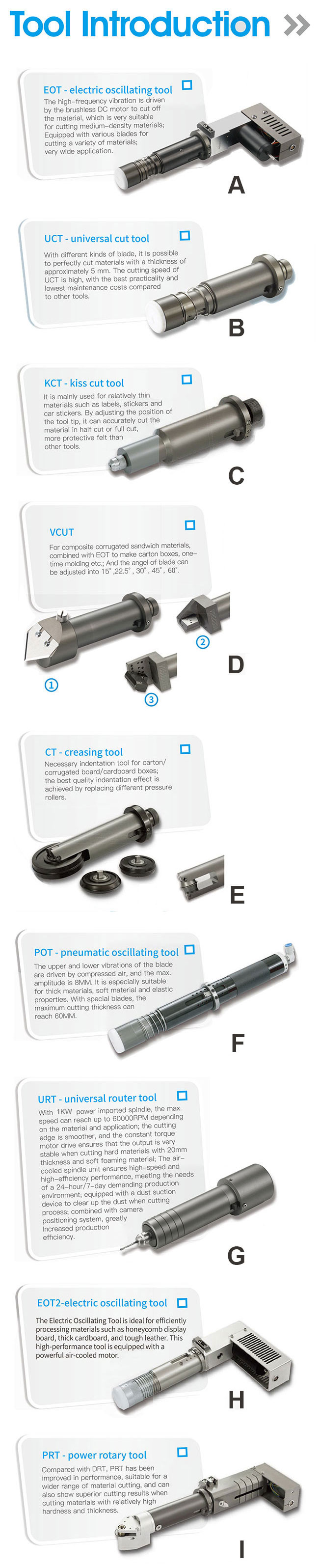

Details :

	Oscillating Knife	The EOT is ideally suited for cutting softer,medium-density materials. The high oscillating frequency makes it possible to cut at high processing speeds for greater throughput. To accommodate different substrates and levels of detail, Ameida offers a wide range of both flat and pointed oscillating blades.
	V-cut	The V-Cut Tool is the perfect tool for producing complex structural designs from foamcore or sandwich board materiails. The well thought-out design of this tool makes for quick tool changes and easy, precise setting of the various cutting angles. The tool can be set for cutting at different angles
	Drag Knife	The Universal Cutting Tool is perfect for through-cutting materials with thicknesses up to approx. 5mm/3/16". The use of drag knives allows for maximumprocessing speeds,and compared to motor-driven tools, the UCT is very inexpensive to purchase and maintain. A spring-loaded glide,shoe permits cutting very fine details. Optionally, a fixed glide shoe can be used for cutting at set depths.
	Kiss Cut	For vinyl-cutting applications and especially kiss-cutting,perfect accuracy in the cutting depth is essential. The variable pressure of the kiss-cut tool permits precise cutting of foils without damageing the liner material. Besides commonly used vinyl and other films up to 3mm(1/8")thick, this tool can also be used for cutting thin paper and card stock. a fixed glide shoe comes with the tool and is used for through-cutting cardboard and Diamond Grade vinyl.
	Crease Wheels	The CTT is perfect for prcessing single-wall corrugated cardboard. the tool produces high-quality creases both with and against the corrugation without tearing or cracking the top layer, the crease wheels simply snap into the holder, making them very to insert and replace.
	CCD System	Through the identification of cameras, as well as the positionging of the function of the CCD,and auxiliary cutting machine. Perfect meet customer requirements. Production of high quality products.
	Milling Tool	AT the heart of RZ is a 300w router spindle which operates at up to 60000rpm, depending on material and application. In combination with the 3mm bits Ameida offers, this routing/engraving tool delivers solid performance in a wide range of applications. Aside from processing softer materials, the tool can also process more chllenging substrates in multiple passes. In a few quick steps, the RZ can be converted from routing to engraving. In Engraving mode, the height of the tool relative to the material surface can be precisely adjusted with a micrometer screw.this ensures precision engraving,with consistent line widths and depths. The airflow from the dust-extraction effectively cools both the router bit and the spindle,which significantly increases their longevity.
